Hey there! As a supplier of Cnc Slide Rails, I've had my fair share of customers scratching their heads over how to pick the right ones based on stroke requirements. It's not as complicated as it might seem at first, though. In this blog, I'm gonna break it down for you step by step.
First things first, let's talk about what stroke means in the context of Cnc Slide Rails. The stroke is basically the distance that the moving part of the linear guide can travel along the rail. It's a crucial factor because if you get it wrong, your CNC machine might not work as efficiently as it should, or worse, it could even cause some serious damage.
So, how do you figure out the right stroke for your needs? Well, the first step is to understand the application of your CNC machine. Are you using it for light - duty tasks like engraving small parts, or is it for heavy - duty machining of large components? For light - duty applications, you might not need a very long stroke. But if you're working on big projects, a longer stroke will be necessary.
Let's say you're in the business of making custom furniture. You're using a CNC router to cut and shape large wooden panels. In this case, you'll need Cnc Slide Rails with a relatively long stroke. This allows the router to move across the entire surface of the panel without any issues. On the other hand, if you're making jewelry and using a CNC mill to create intricate designs on small pieces, a shorter stroke might be sufficient.

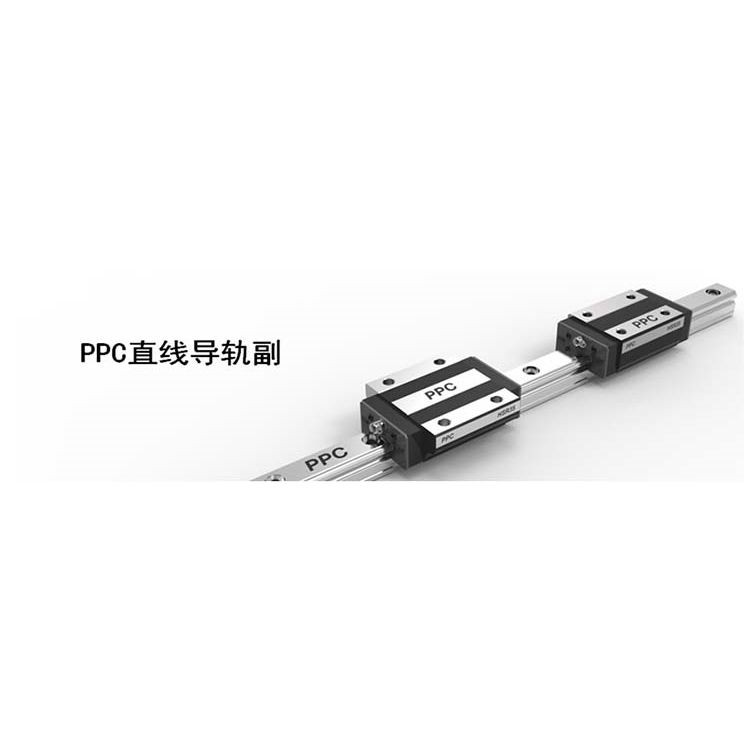

Now, when it comes to actually selecting the Cnc Slide Rails based on stroke, there are a few things you need to keep in mind. One of the most important factors is the load capacity. You see, as the stroke increases, the load capacity of the slide rails can be affected. If you have a long - stroke application but choose slide rails with a low load capacity, they might bend or break under the weight of the moving parts. So, make sure to check the load - capacity ratings of the Cnc Slide Rails you're considering. You can find more info about different types of linear guides, including Motion Linear Guide, on this page: Motion Linear Guide.
Another thing to consider is the accuracy requirements. If your CNC machine needs to make very precise cuts or movements, you'll want slide rails that can maintain a high level of accuracy over the entire stroke. Some Cnc Slide Rails are designed with special features to improve accuracy, such as pre - loaded ball bearings or high - precision grinding.
The type of guideway also plays a role in stroke selection. There are different types of guideways available, like ball guideways and Roller Guideways. Roller guideways, for example, are known for their high load - carrying capacity and smooth operation. They can be a great choice for applications with long strokes and heavy loads. However, they might be a bit more expensive than ball guideways.
When you're looking at the stroke length, you also need to think about the installation space. You need to make sure that the slide rails you choose will fit into the available space in your CNC machine. Sometimes, a longer stroke might require more space, so you need to plan accordingly.
Let's talk about some practical tips for selecting Cnc Slide Rails based on stroke. First, measure the maximum distance that the moving part of your CNC machine needs to travel. This will give you a good starting point for determining the required stroke length. Then, look at the specifications of different Cnc Slide Rails. Most manufacturers will list the stroke length, load capacity, and accuracy ratings on their product pages. You can check out our range of Cnc Slide Rails to see what options are available.
It's also a good idea to read reviews from other users. They can give you real - world insights into how well a particular set of slide rails performs over a certain stroke length. You can find reviews on industry forums or on the websites of the manufacturers.
If you're still not sure which Cnc Slide Rails to choose, don't hesitate to reach out to us. We've got a team of experts who can help you make the right decision based on your specific stroke requirements and other factors. We understand that every CNC application is unique, and we're here to make sure you get the best slide rails for your needs.
In conclusion, selecting Cnc Slide Rails according to stroke requirements is all about understanding your application, considering factors like load capacity and accuracy, and choosing the right type of guideway. By following these steps and doing your research, you can find the perfect slide rails for your CNC machine.
If you're interested in purchasing Cnc Slide Rails or have any questions about stroke requirements, feel free to get in touch with us. We're always happy to have a chat and help you make the best choice for your business.
